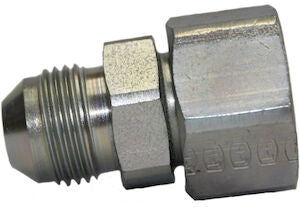

6FDLX-5MJ M12X1.5 Female DIN Swivel Light to 5/16" Male JIC
6FDLX-5MJ M12X1.5 Female DIN Swivel Light to 5/16" Male JIC is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details
DIN 3902 Series is a common male with three different possible female halves. The straight metric thread male has a 24° angle. Its recessed counter-bore matches the tube O.D. it is connected to. The female may be one of the following: A tube, nut and ferrule (compression style), a tapered nose flareless swivel, a tapered nose flareless swivel with a DKO style O-ring in the nose.
Specifications
| Thread Size 1 | M12X1.5 |
| Thread Size 2 | 1/2"-20 |
| End Nominal Size 1 | 6 (mm) |
| End Nominal Size 2 | 5/16 (in) |
