SKU:
3HF3-B

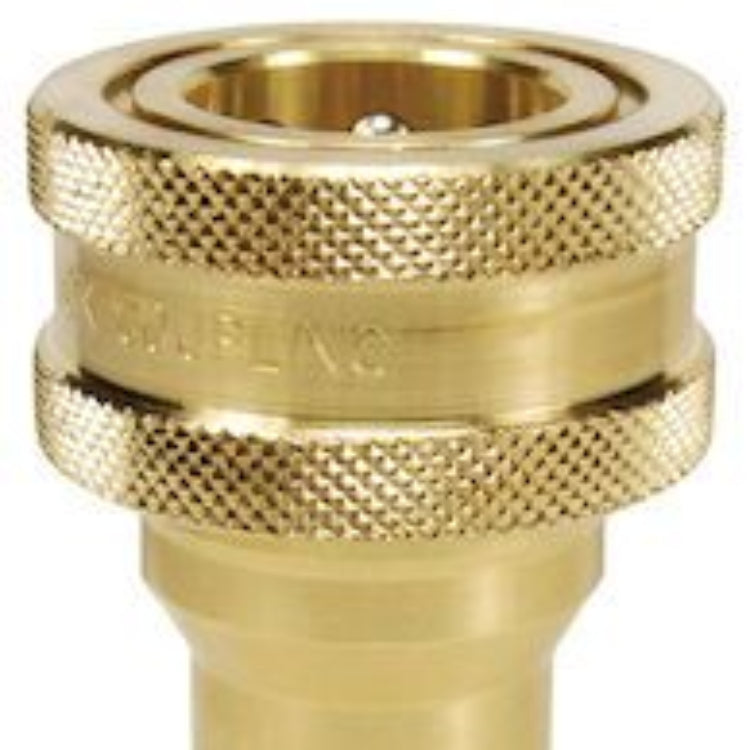

3HF3-B 3/8 IN ISO B Socket x 3/8-18 NPTF with Female Threads - Brass
$24.04
Unit price
/
Unavailable
Shipping calculated at checkout.
3HF3-B 3/8 IN ISO B Socket x 3/8-18 NPTF with Female Threads - Brass
$24.04
Unit price
/
Unavailable
Description
Description
Product Details
Hydraulic quick disconnects meeting ISO 7241 Series B Interchange standards. Couplings have poppet style shutoff valves.
Specifications
| Operating Pressure Rating | 3000 |
| Operating Temperature Range | -40°C to +121°C |
| Overall Length | 2.51 (in) |
| Overall Width | 1.42 (in) |
| Series | H |
| Thread Size 1 | 3/8"-18 |
| Body Material | Brass |
| Body Size | 3/8 (in) |
| Brand | Dixon |
| End Style 1 | NPTF |
| Hex Size | 1-1/16 (in) |
| Nominal Size 1 | 3/8 (in) |
