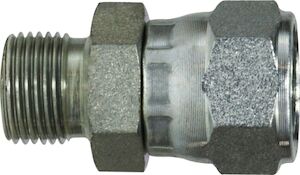

10MBSPP-10FJX - 5/8" Male British Parallel Pipe to 5/8" F...
$27.46
Unit price
/
Unavailable
Description
Description
Product Details
BSPP (parallel) male connection is comparable to NPSM male except most sizes have a different thread pitch. A captive seal is made using metal to metal angled surfaces or a combination of metal to metal and an O-ring. This type of connection is very similar (but not interchangeable) with the American NPSM male. The female swivel BSPP has a tapered nose flareless swivel where the seal occurs on the cone seat of the male connector.
Specifications
| Thread Size 1 | 5/8"-14 |
| Thread Size 2 | 7/8"-14 |
| End Nominal Size 1 | 5/8 (in) |
| End Nominal Size 2 | 5/8 (in) |
