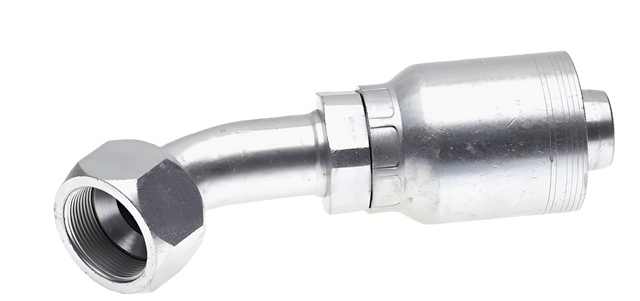

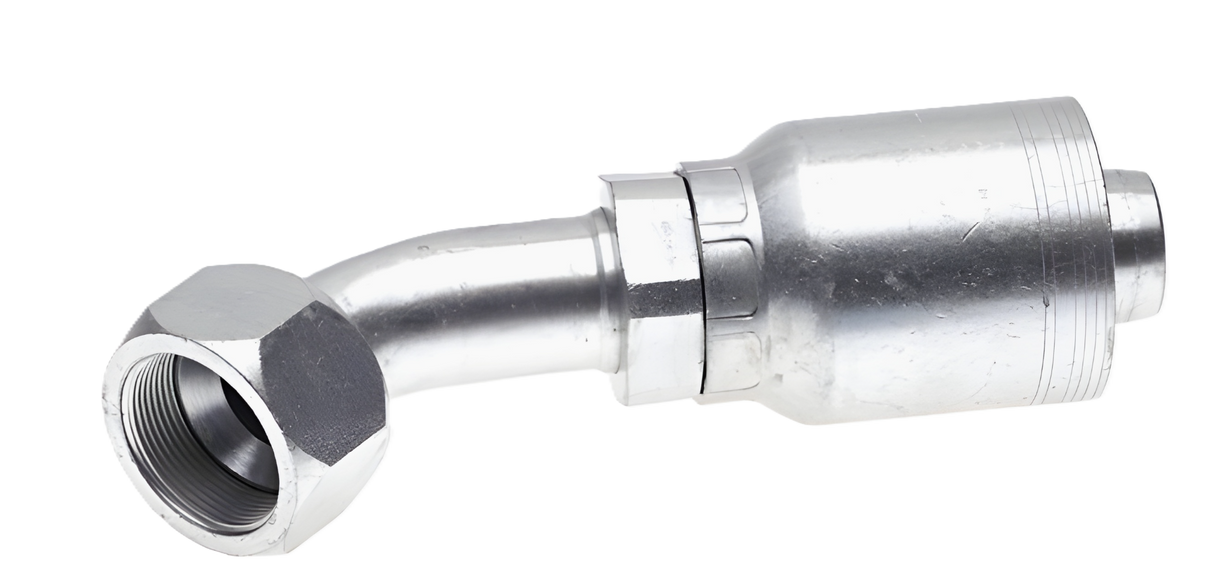

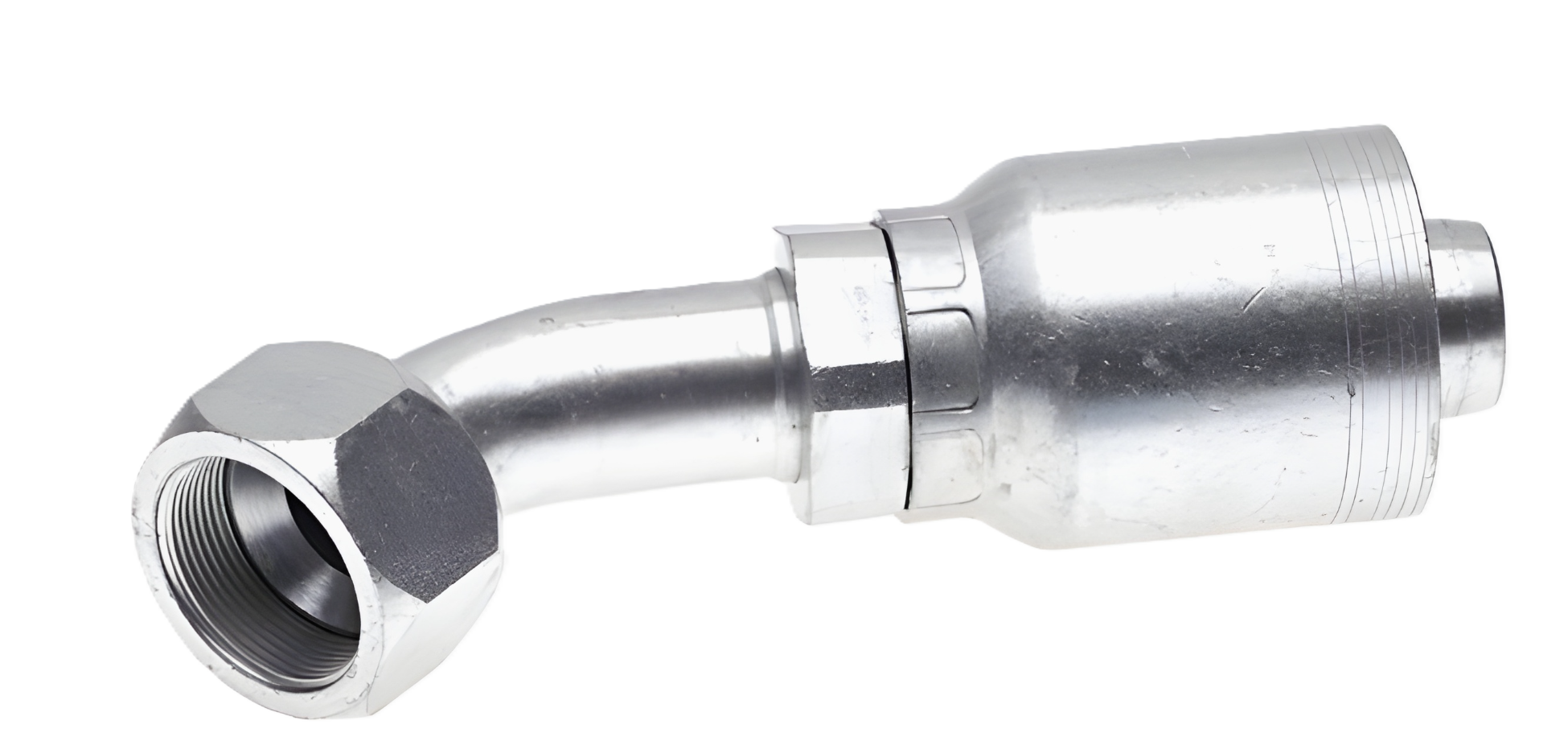

24GSM-24FJX45-034 1-1/2" GlobalSpiral MAX x 1-1/2" Female JIC Swivel 45
Buy Bulk & Save
| Buy | Save |
|---|---|
| 10 or more | 5% off |
24GSM-24FJX45-034 1-1/2" GlobalSpiral MAX x 1-1/2" Female...
Description
Description
Product Details
1-1/2" and 2" no-skive coupling design for high pressure spiral wire hose rated at 5000 and 6000 PSI. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating - more than five times better corrosion resistance than SAE ASTMB117 specification. Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention. GlobalSpiral™ thread ends are able to handle working pressures up to 6,000 psi.
Specifications
| Length | 8.9 (in) |
| Nut Hex Size | 60 (in) |
| Thread Size 1 | 1-7/8"-12 |
| Cutoff Length | 5.15 (in) |
| Fitting Nominal Size | 1-1/2 (in) |
| Hose ID 1 | 1-1/2 (in) |
