Special Order
SKU:
G24830-2424

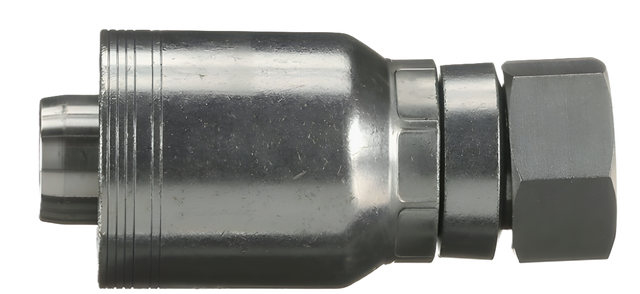

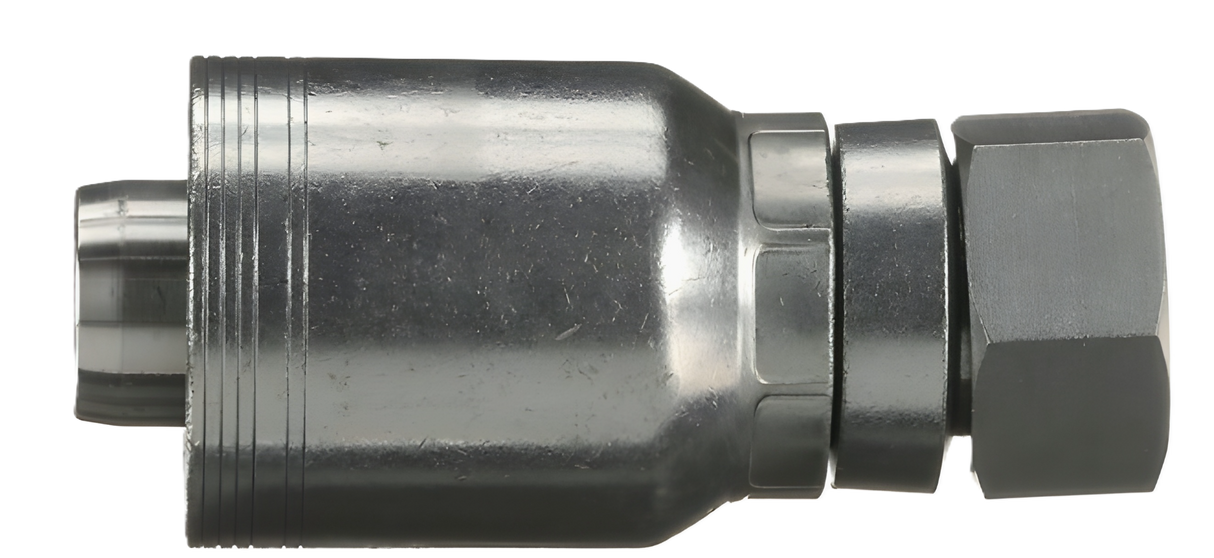

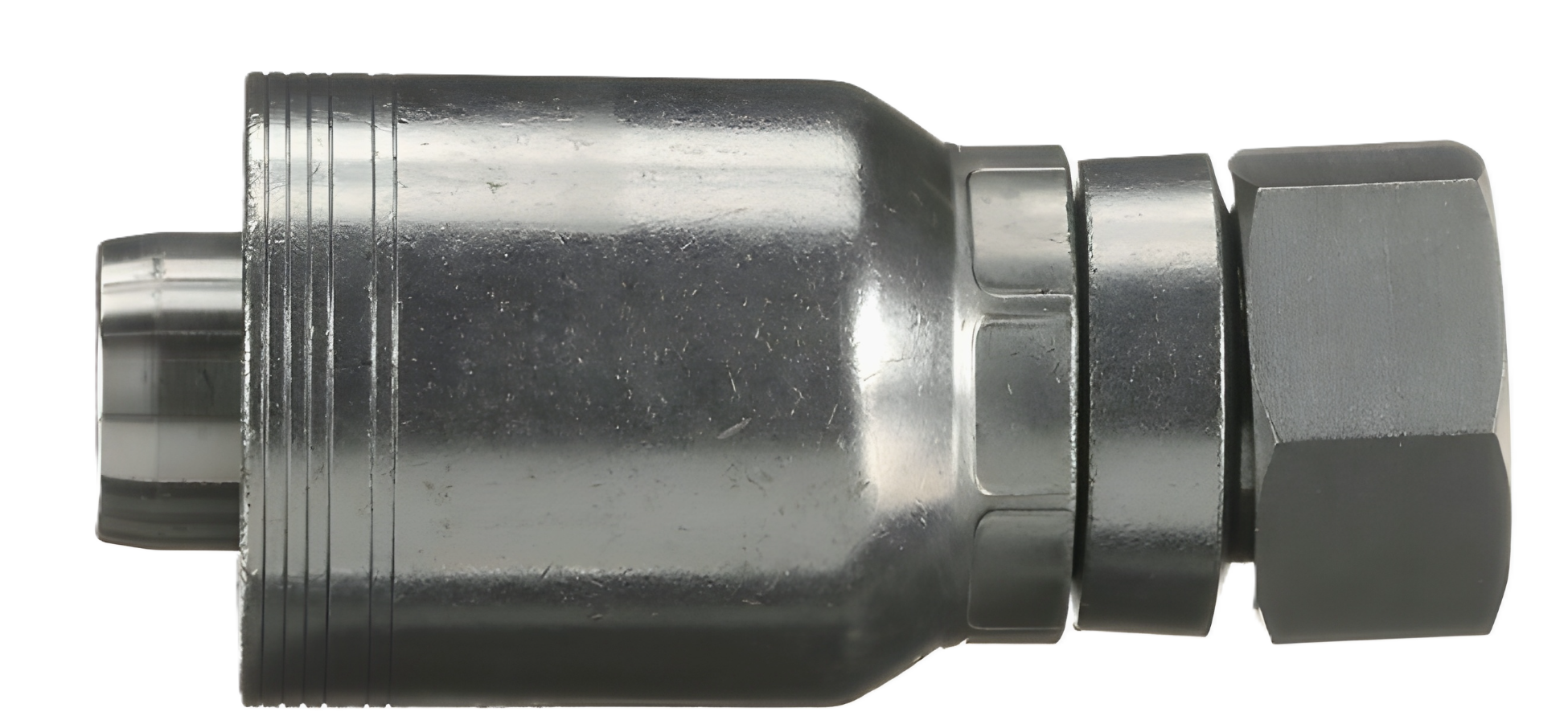

24GSM-24FBSPORX 1-1/2 GlobalSpiral MAX x 1-1/2 Female British Standard Parallel O-Ring Swivel
$336.17
Precio unitario
/
Agotado
Los gastos de envÃo se calcularán al momento de pagar.
Buy Bulk & Save
| Buy | Save |
|---|---|
| 10 or more | 5% off |
24GSM-24FBSPORX 1-1/2 GlobalSpiral MAX x 1-1/2 Female British Stand...
$336.17
Precio unitario
/
Agotado
Descripción
Descripción
Product Details
1-1/2" and 2" no-skive coupling design for high pressure spiral wire hose rated at 5000 and 6000 PSI. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system.
Specifications
| Length | 6.06 (in) |
| Nut Hex Size | 55 (mm) |
| Thread Pitch | 11 |
| Thread Size 1 | 1-1/2"-11 |
| Cutoff Length | 2.32 (in) |
| Fitting Nominal Size | 1-1/2 (in) |
| Hose ID 1 | 1-1/2 (in) |
