2WF1-B

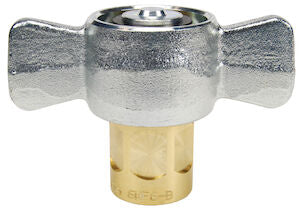

2WF1-B 1/4 Wing Style Socket x 1/8-27 NPTF with Female Threads - Brass
$97.22
Unit price
/
Unavailable
Shipping calculated at checkout.
2WF1-B 1/4 Wing Style Socket x 1/8-27 NPTF with Female Threads - Brass
$97.22
Unit price
/
Unavailable
Description
Description
Product Details
Wingstyle quick disconnect couplings that can be connected under residual pressure with minimum spillage and air inclusion. Widely used on dump trailer wet-line hydraulic systems and oil field equipment. Not recommended for continuous hydraulic impulse applications.
Specifications
| Nominal Size 1 | 1/8 (in) |
| Operating Pressure Rating | 3000 |
| Operating Temperature Range | -40°C to +121°C |
| Overall Length | 2 (in) |
| Series | W |
| Thread Size 1 | 1/8"-27 |
| Body Material | Brass |
| Body Size | 1/4 (in) |
| Brand | Dixon |
| End Style 1 | NPTF |
| Hex Size | 0.63 (in) |
