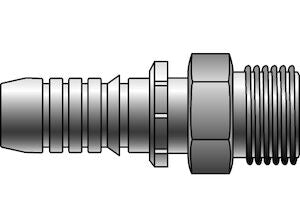

8GS-16MDH Gates 1/2 GlobalSpiral x 24-1.5 MM Male DIN Heavy
8GS-16MDH Gates 1/2 GlobalSpiral x 24-1.5 MM Male DIN Heavy is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details
Gates® GlobalSpiral couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. GlobalSpiral thread ends are able to handle working pressures up to 6,000 psi. Coated with TuffCoat plating - more than five times better corrosion resistance than SAE ASTMB117 specification.
Specifications
| Thread Pitch | 1.5 |
| Thread Size 1 | M24X1.5 |
| Tube OD | 16 |
| Tube OD 1 | 16 (mm) |
| Cutoff Length | 1.18 (in) |
| Hose ID 1 | 1/2 (in) |
| Length | 1.17 (in) |
| Stem Hex Size | 27 (mm) |
