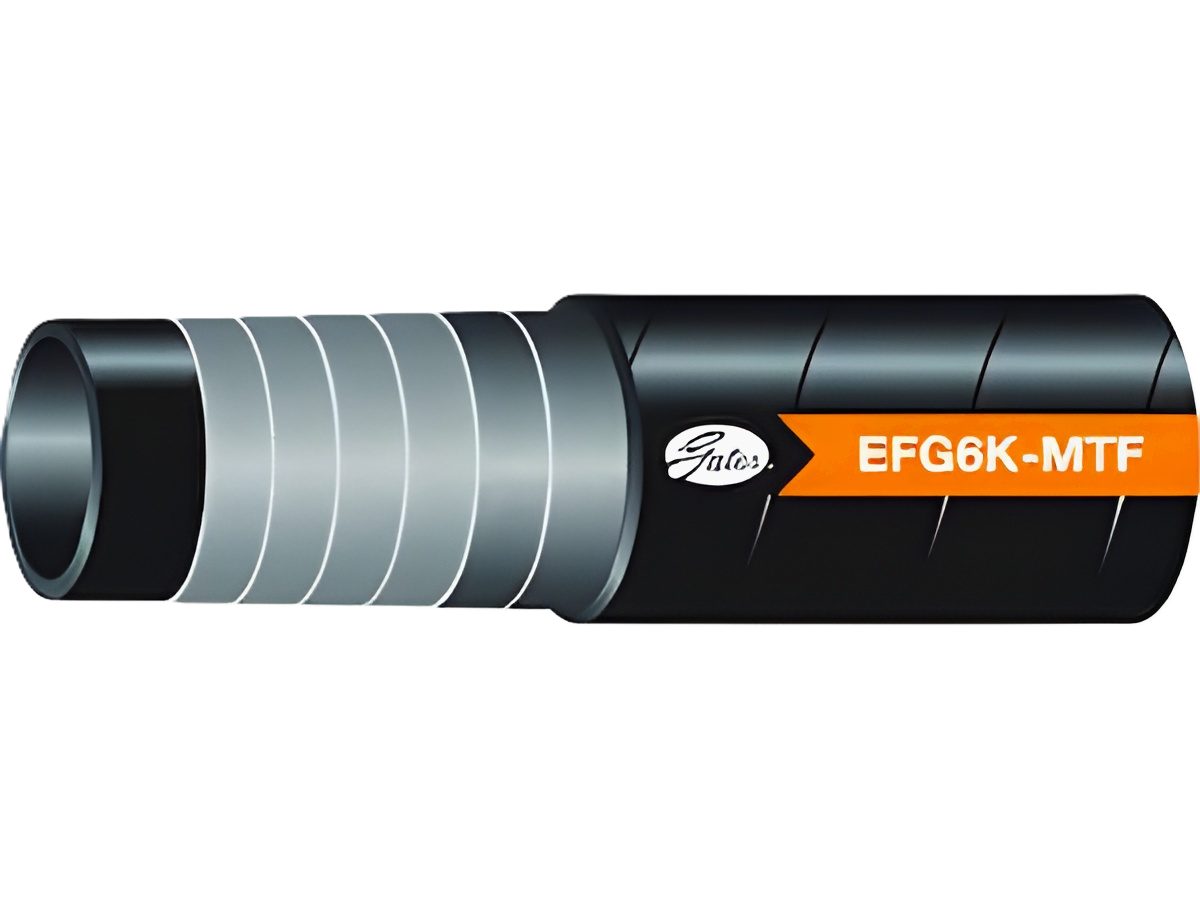

12EFG6K-MTF 3/4 IN EFG6K-MTF Extreme High Pressure Hose SAE 100R15
12EFG6K-MTF 3/4 IN EFG6K-MTF Extreme High Pressure Hose SAE 100R15
Descripción
Descripción
Product Details
Extremely high-pressure hydraulic applications. EFG5K is designed to meet or exceed all requirements of SAE 100R13 specifications and performance requirements of EN 856 4SH (-16 and -20), EN 856 4SP (-10, and -12), EN 856 R13, and ISO 3862 Type R13 (-12, -16, -20, -24, -32). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. *Note: There will be a charge added of $10.00 for each cut under 25'.
Specifications
| MIN Bend Radius | 4.7 (in) |
| MIN Burst Pressure (PSI) | 24000 |
| Outside Diameter 1 | 1.24 (in) |
| Hose Dash Size | 12 |
| Inside Diameter | 3/4 (in) |
| MAX Working Pressure (PSI) | 6000 |
