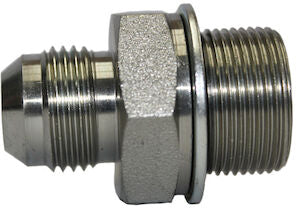

12MDL-8MJ M18X1.5 Male DIN Light to 1/2" Male JIC
$9.60
Precio unitario
/
Agotado
Descripción
Descripción
Product Details
DIN 3902 Series is a common male with three different possible female halves. The straight metric thread male has a 24° angle. Its recessed counter-bore matches the tube O.D. it is connected to. The female may be one of the following: A tube, nut and ferrule (compression style), a tapered nose flareless swivel, a tapered nose flareless swivel with a DKO style O-ring in the nose.
Specifications
| Thread Size 1 | M18X1.5 |
| Thread Size 2 | 3/4"-16 |
| End Nominal Size 1 | 12 (mm) |
| End Nominal Size 2 | 1/2 (in) |
